Search results for: 'reference+electrode'

Reference Electrode - Simple screw top makes refilling quick and easy.

Learn More

Glass bodied refillable calomel reference electrode for laboratory use in various applications including corrosion, general electrochemistry etc.

Reference Potential:    +244mV

Reference:                       Hg/Hg₂Cl₂

Body:                                 Glass

Temp:                                5 - 55ºC

Learn More

Intermediate Junction Reference Electrode with replaceable electrolyte.

Reference Potential:    +198mV vs SHE

Reference:                       Double Junction Ag/AgCl

Body:                                 Polypropylene

Temp:                                0 - 60ºC

Learn More

Sealed gel double junction reference electrode.

Reference Potential:    +198mV vs SHE

Reference:                       Double Junction Ag/AgCl

Body:                                 Polypropylene

Temp:                                0 - 60ºC

Learn More

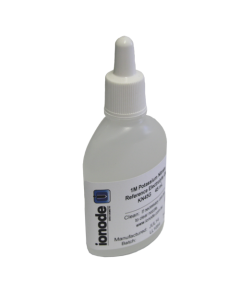

Gelled Potassium nitrate reference electrolyte for use when you do not want chloride contamination in your samples. Can be used with the IJ range of Ion selective electrodes and the IJ14 reference electrode Learn More

Chloride Titration Electrode featuring Ionode's unique Intermediate Junction reference.

Learn More

Intermediate Junction ORP Electrode with platinum wire tip and replaceable electrolyte.

Range:    ±2000mV

Sensor:   Platinum Wire

Body:      Polypropylene

Temp:     0 - 60ºC

Learn More

Ionode Intermediate Junction pH Electrode with replaceable electrolyte, general purpose.

pH Range:      0 - 14

Membrane:   A Glass – Spear

Body:              Polypropylene

Temp:             0 - 60ºC

Learn More

IJ46 Intermediate Junction pH Electrode.

pH Range:      0 - 14

Membrane:   A Glass – Flat

Body:              Polypropylene

Temp:             0 - 60ºC

Learn More

Intermediate Junction pH Electrode.

pH Range:      0 - 14

Membrane:   A Glass – Bullet

Body:              Polypropylene

Temp:             0 - 60ºC

Learn More

Sealed gel double junction ORP Electrode

Range:    ±2000mV

Sensor:   Platinum Wire

Body:      Polypropylene

Temp:     0 - 60ºC

Learn More

Sealed Gel Double Junction ORP Electrode

Range:    ±2000mV

Sensor:   Platinum Disk

Body:      Polypropylene

Temp:     0 - 60ºC

Learn More

IH40A Sealed Gel pH Electrode

pH Range:      0 - 14

Membrane:   A Glass – Bullet

Body:              Polypropylene

Temp:             0 - 60ºC

Learn More

Enhanced series Intermediate Junction ORP Electrode with platinum wire tip and replaceable electrolyte. With superior thermal and chemical properties.

Range:    ±2000mV

Sensor:   Platinum Wire

Body:      PVDF (Kynar)

Temp:     0 - 100ºC

Learn More

Ionode Phosphate Ion Selective Electrode

Range (ppm):     3.0 - 10,000

pH range:            4 - 5

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   Redox active species

Learn More

Ionode Iodide ISE 1m BNC

Range (ppm):     0.013 - 130,000

pH range:            2 - 12

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   Br⁻, CN⁻, S²⁻

Learn More

Ionode Fluoride Ion Selective Electrode

Range (ppm):     0.02 - 19,000

pH range:            5 - 7

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   OH⁻

Learn More

Intermediate Junction pH Electrode with high temperature capability and replaceable electrolyte. With superior thermal and chemical properties for operation up to 100°C.

pH Range:      0 - 14

Membrane:   A Glass – Bullet

Body:              PVDF (Kynar)

Temp:             0 - 100ºC

Learn More

Intermediate Junction pH Electrode with high-temperature capability and replaceable electrolyte.

pH Range:      0 - 14

Membrane:   A Glass – Spear

Body:              PVDF (Kynar)

Temp:             0 - 100ºC

Learn More

Ionode Cyanide ISE 1m BNC

Range (ppm):     0.2 - 260

pH range:            5 - 7

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   S²⁻, I⁻, Br⁻

Learn More

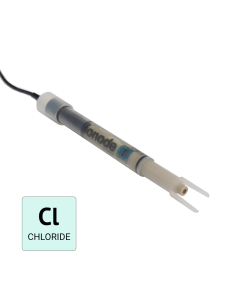

Ionode Chloride ISE 1m BNC

Range (ppm):     1.8 - 35,500

pH range:            2 - 12

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   S²⁻,Br⁻, I⁻, CN⁻

Learn More

Ionode Surfactant (PVC) ISE 1m BNC

Range (ppm):     10 - 14,400

pH range:            2 - 12

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   Organic anions and, Cations which resemble the species of interest

Learn More

Ionode Sodium (PVC) ISE 1m BNC

Range (ppm):     0.1 - 23,000

pH range:            2 - 12

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   Li⁺, K⁺, Cs⁺, Ca²⁺, Tl⁺, Ag⁺, H⁺

Learn More

Ionode Calcium (PVC) ISE 1m BNC

Range (ppm):     0.1 - 40,000

pH range:            2.5 - 11

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   Pb²⁺, Hg²⁺, H⁺, Sr²⁺, Fe²⁺, Cu²⁺, Ni²⁺, NH₄⁺

Learn More

Ionode Water Hardness (PVC) ISE 1m BNC

Range (ppm):     1.0 to 10,000 ppm hardness as CaCO­3 (10 µM to 1M)

pH range:            7 - 10

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   Na⁺, K⁺, Zn²⁺, Fe²⁺, Cu²⁺, Ni²⁺, Sr²⁺, Ba²⁺

Learn More

Ionode Nitrate (PVC) ISE 1m BNC

Range (ppm):     0.2 - 14,000

pH range:            2.5 - 11

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   HS^-, HCO₃-, CO₃^2-, H₂PO₄-, Cl^-, Br^-, I^-, ClO₄^-, ClO₃^-, CN^-, NO₂^-

Learn More

Ionode Silver Sulphide ISE 1m BNC

Model	Parameter	Measuring Range	Temp. Range	pH Range	Main Interferences	Slope
ISE-Ag2S	S2-	0.003 - 32,000 ppm	0 - 60ºC	>11	Hg+/2+	57mV/decade ± 3mV
	Ag+	0.01 - 108,000 ppm		2 - 8		27mV/decade ± 3mV

Learn More
